12V 40A 4-pinna relay með díóðu – Normally Open (NO)
2.290 kr.
- Spenna: 12 V DC
- Straumþol: 40 A
- Tengjaskipan: Gerð B
- Fjöldi pinna: 4
- Stærð pinna: 6,3 mm
- Festing: Aftakanleg málmfesting
- Heildarmál (með tengjum): 31 (L) × 27 (B) × 36 (H) mm
Availability: In stock

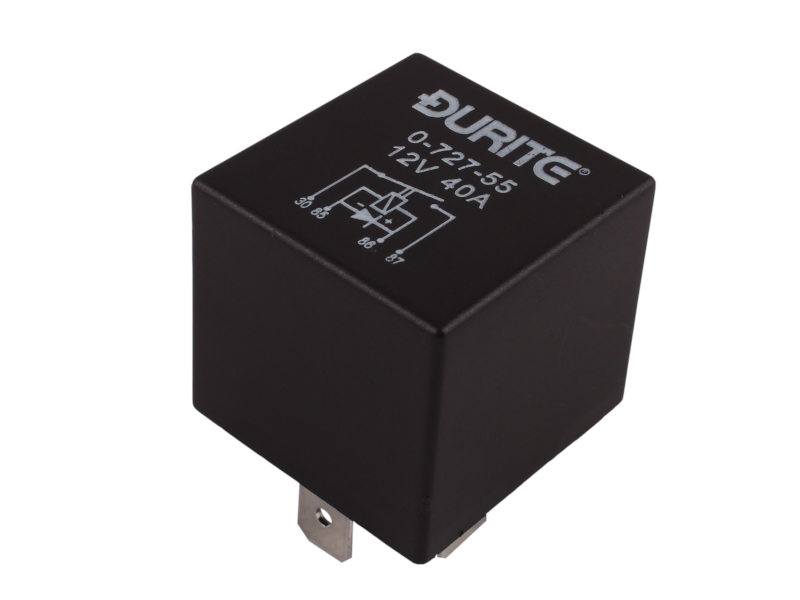

Durite standard/mini make and break relay with normally open contacts and diode, rated at 12V, 40A.

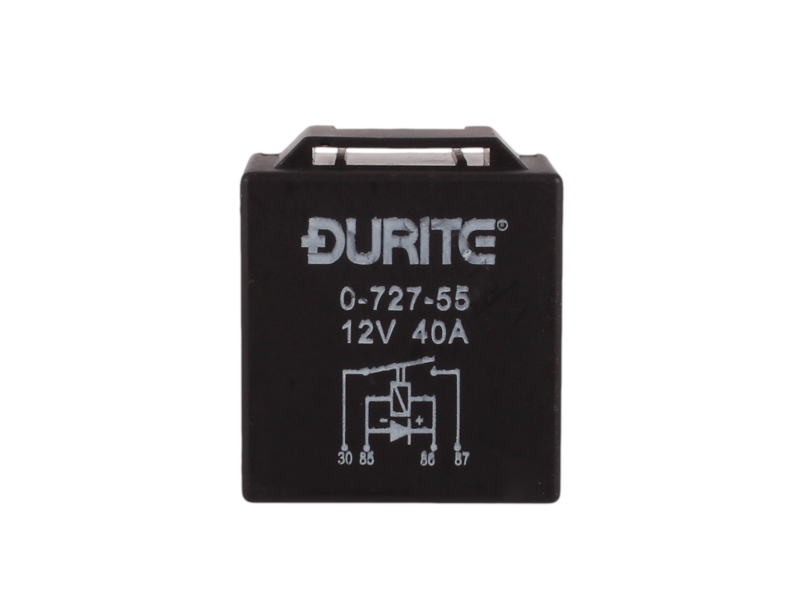

The diode fitted across the coil (terminals 85 & 86) suppresses voltage spikes that occur in the coil circuit when the relay is de-energised. If not suppressed, these can damage sensitive circuit components such as found in central locking or alarm systems.
Important: +12V must be applied to terminal 86 and ground to terminal 85. If this is reversed the diode may be damaged.

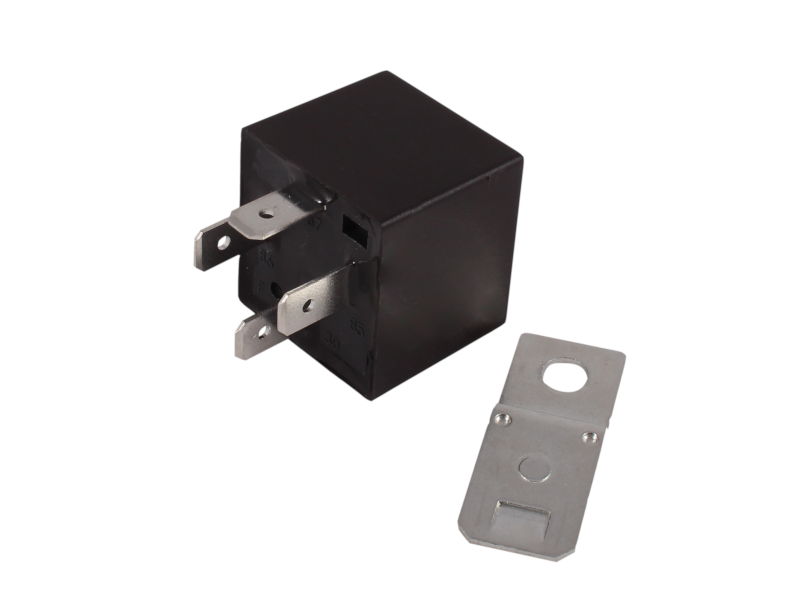

Includes detachable metal bracket for mounting if not using a relay socket.

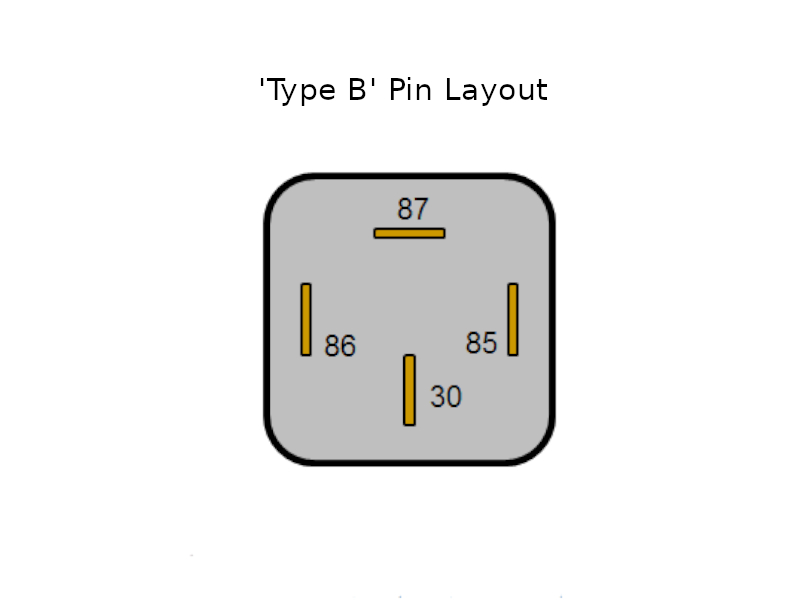

Type B pin layout.
- Voltage rating: 12V DC
- Current rating: 40A
- Terminal configuration: Type B
- No terminals: 4
- Terminal size: 6.3mm blade
- Bracket type: Removable, metal
- Overall dims (inc. terminals): 31 (L) x 27 (W) x 36 (H) mm
