12V 20A 4-pinna relay – Normally Closed (NC)

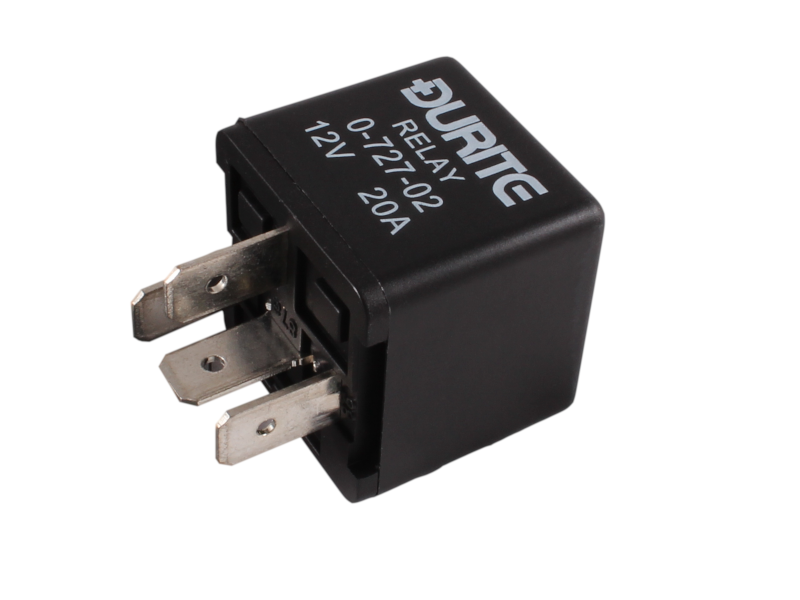

Durite standard/mini break and make relay with normally closed contacts rated at 12V, 20A.

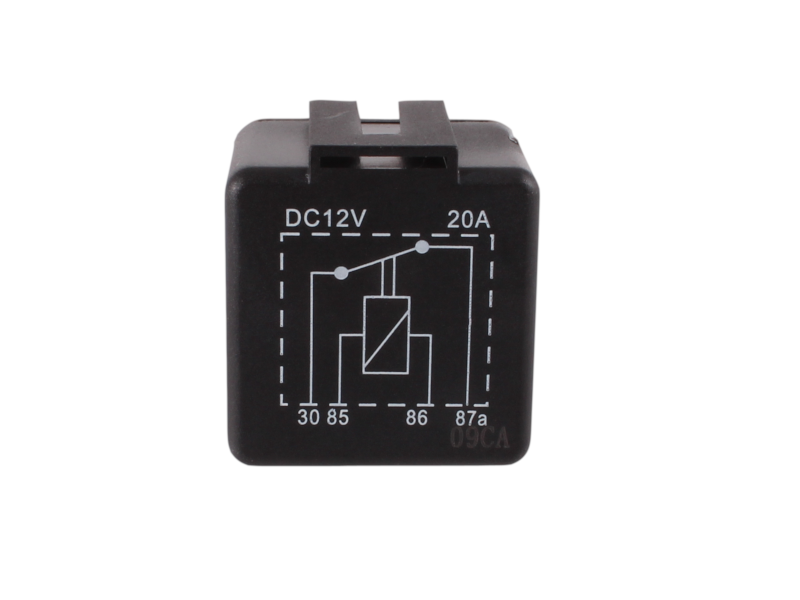

This relay is configured in the opposite manner to most 4 pin relays in that the high current circuit (pins 30 & 87) are connected until the relay is energised, at which point they disconnect (it’s a ‘break and make’ relay, rather than a ‘make and break’ relay).  This can be useful if you want to temporarily disconnect a circuit rather than temporarily connect it.

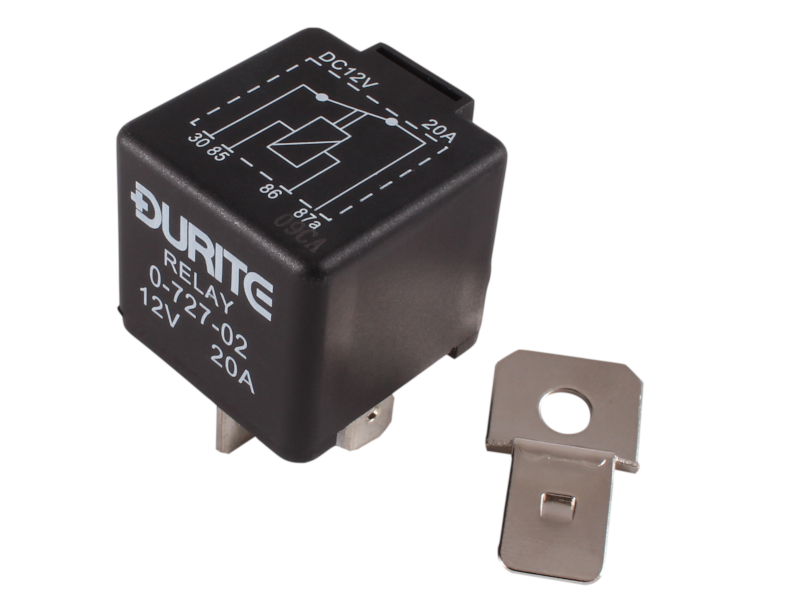

Includes detachable metal bracket for mounting if not using a relay socket.

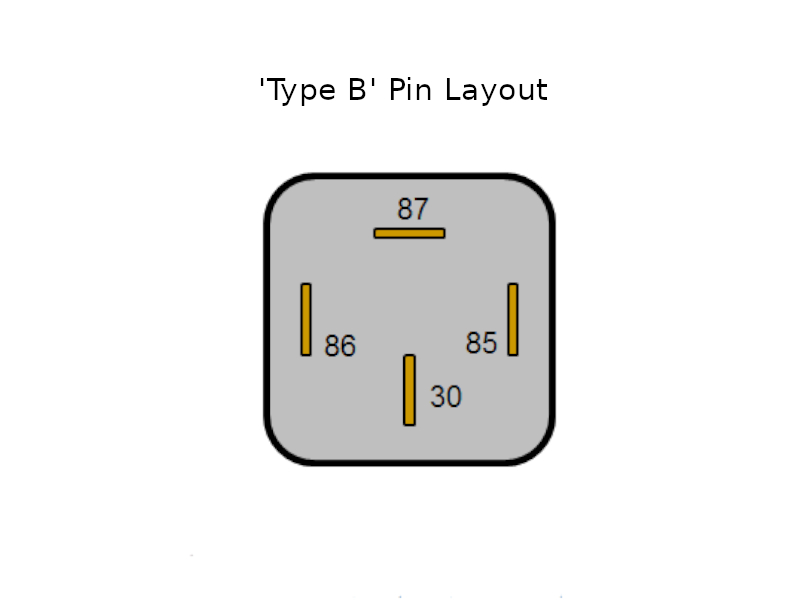

Type B pin layout.

• Voltage rating: 12V DC
• Current rating: 20A
• Terminal configuration: Type B
• No terminals: 4
• Terminal size: 6.3mm blade
• Bracket type: Detachable, metal
• Overall dims (inc. terminals): 28 (L) x 26 (W) x 36 (H) mm
