RELAY OG RELAYBOX
12V 30/40A 5-pinna relay með díóðu – Changeover
1.890 kr.
Mikilvægt: +12 V skal tengja við pinna 86 og jörð við pinna 85. Ef tengt er öfugt getur díóðan skemmst.
- Spenna: 12 V DC
- Straumþol: 30/40 A
- Tengjaskipan: Gerð B
- Fjöldi pinna: 5
- Stærð pinna: 6,3 mm
- Festing: Aftakanleg málmfesting
- Þvermál festingargats: 5 mm
- Heildarmál (með tengjum): 31 (L) × 27 (B) × 36 (H) mm
Availability: In stock

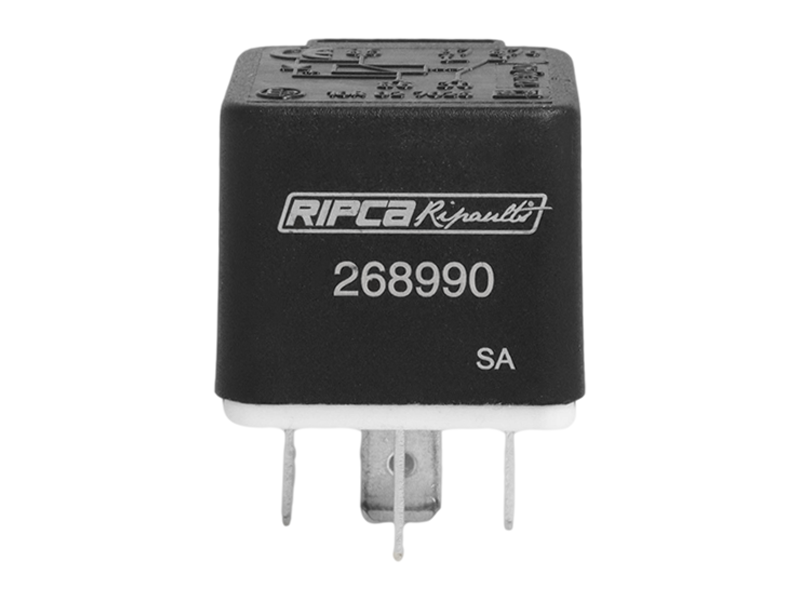

Standard/mini changeover relay with diode, rated at 12V, 30/40A.

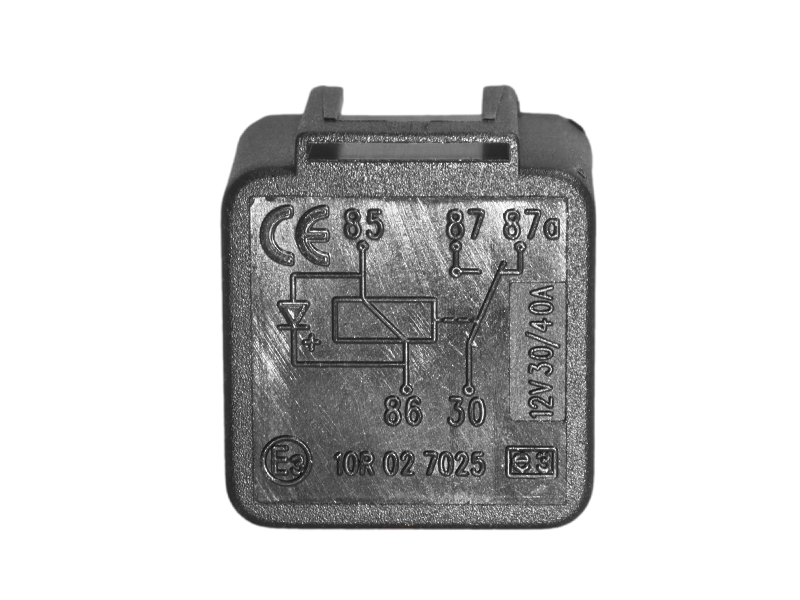

Features a diode fitted across the coil (terminals 85 & 86) to suppress voltage spikes that occur in the coil circuit when the relay is de-energised. If not suppressed, these can damage sensitive electronic components such as those found in central locking or alarm systems.
Important: +12V must be applied to terminal 86 and ground to terminal 85. If this is reversed, the diode may be damaged.

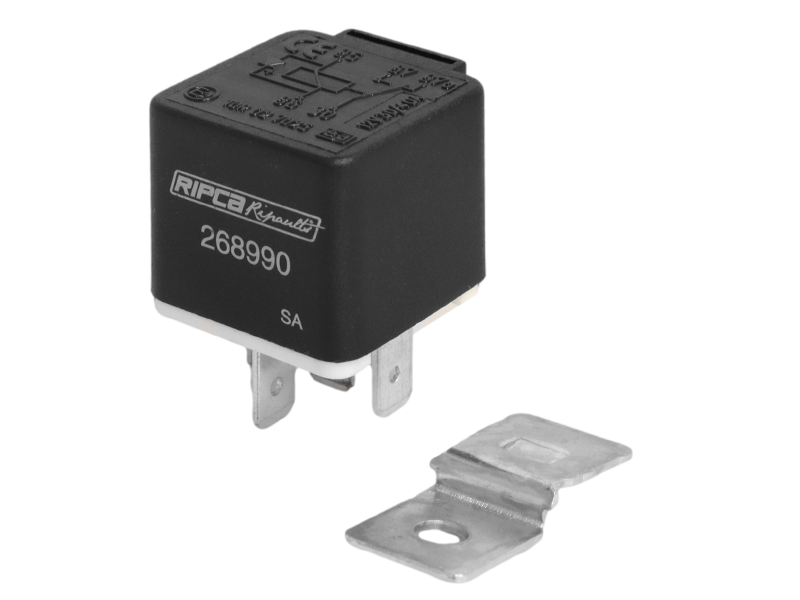

Includes detachable metal bracket for mounting if not using a relay socket.

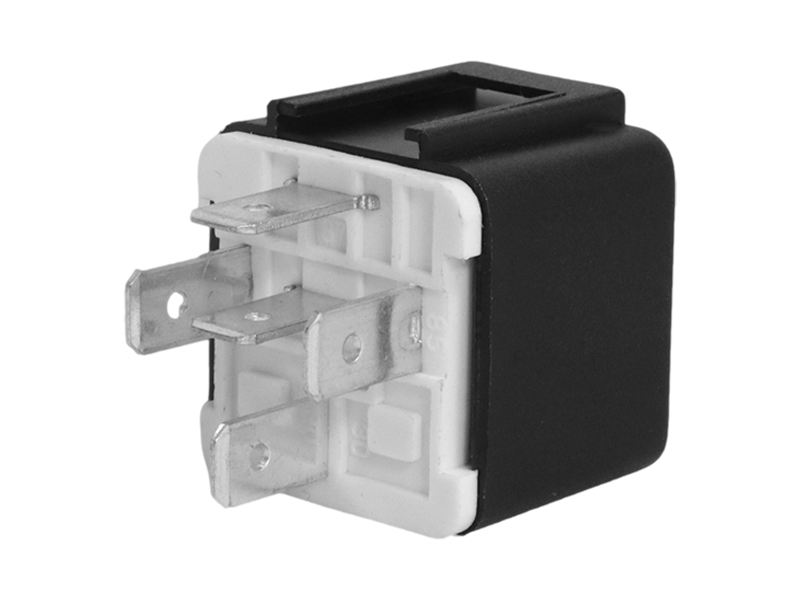

Type B pin layout
The dual current rating (30/40A) means that the output connected when the coil is not energised (term 87a) can carry 30A , and the output connected when the coil is energised (term 87) can carry 40A.
- Voltage rating: 12V DC
- Current rating: 30/40A
- Terminal configuration: Type B
- No terminals: 5
- Terminal size: 6.3mm blade
- Bracket type: Detachable, metal
- Bracket hole dia: 5mm
- Overall dims (inc. terminals): 31 (L) x 27 (W) x 36 (H) mm
