Vatnsheldur rofi með rauðu LED – 12V 20A
590 kr.

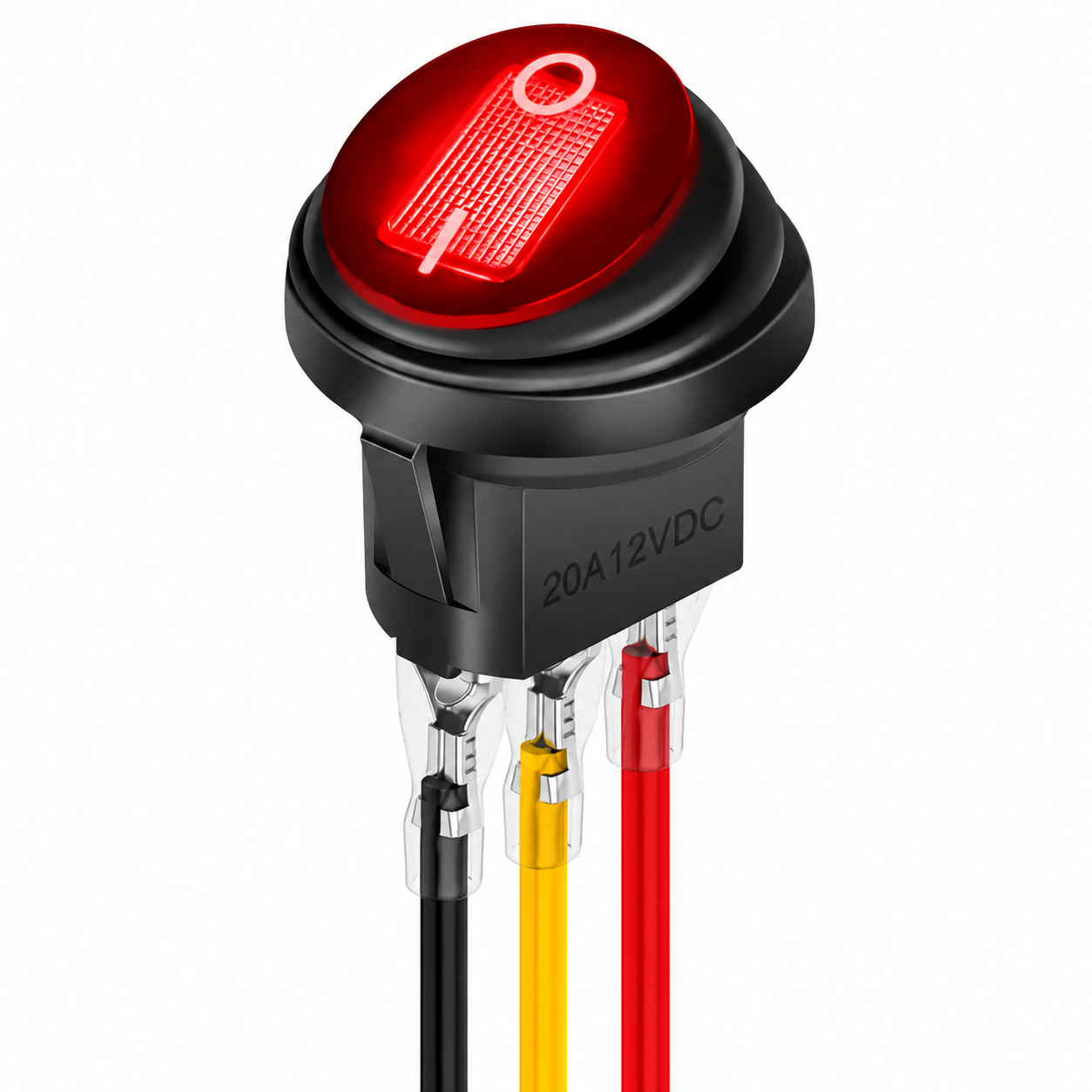

Vatnsheldur rofi með rauðu LED – 12V 20A
Vatnsheldur ON/OFF þrýstirofi með rauðu LED-ljósi. 3-pinna SPST rofi, 12V og allt að 20A. Hentar vel í bíla, vinnuvélar, báta og önnur 12V kerfi.
Availability: In stock
About this item
- LED Indicator Light: This round toggle switch comes with 12 volt Red LED light, so when you turn the rocker switch 12V on, the LED light also lights up at the same time, which could indicates the working status of the device
- Snap-in Design:The round switch adopts a snap-in design for easy installation, and it have 3 terminals: silver plated brass,longer service life
- Waterproof: With a rubber cover can be safely used in moist environment, IP65 waterproof performance, so that it can be widely applied to marine, boats, ships, automotive, cars, RVs, trucks, off road vehicles, ATVs, and any others that use a 12V power source
- Material: The round rocker switches are made of high-quality plastic and good brass conductive pins, The switch has passed our quality inspection. Switching Life: 50000 times

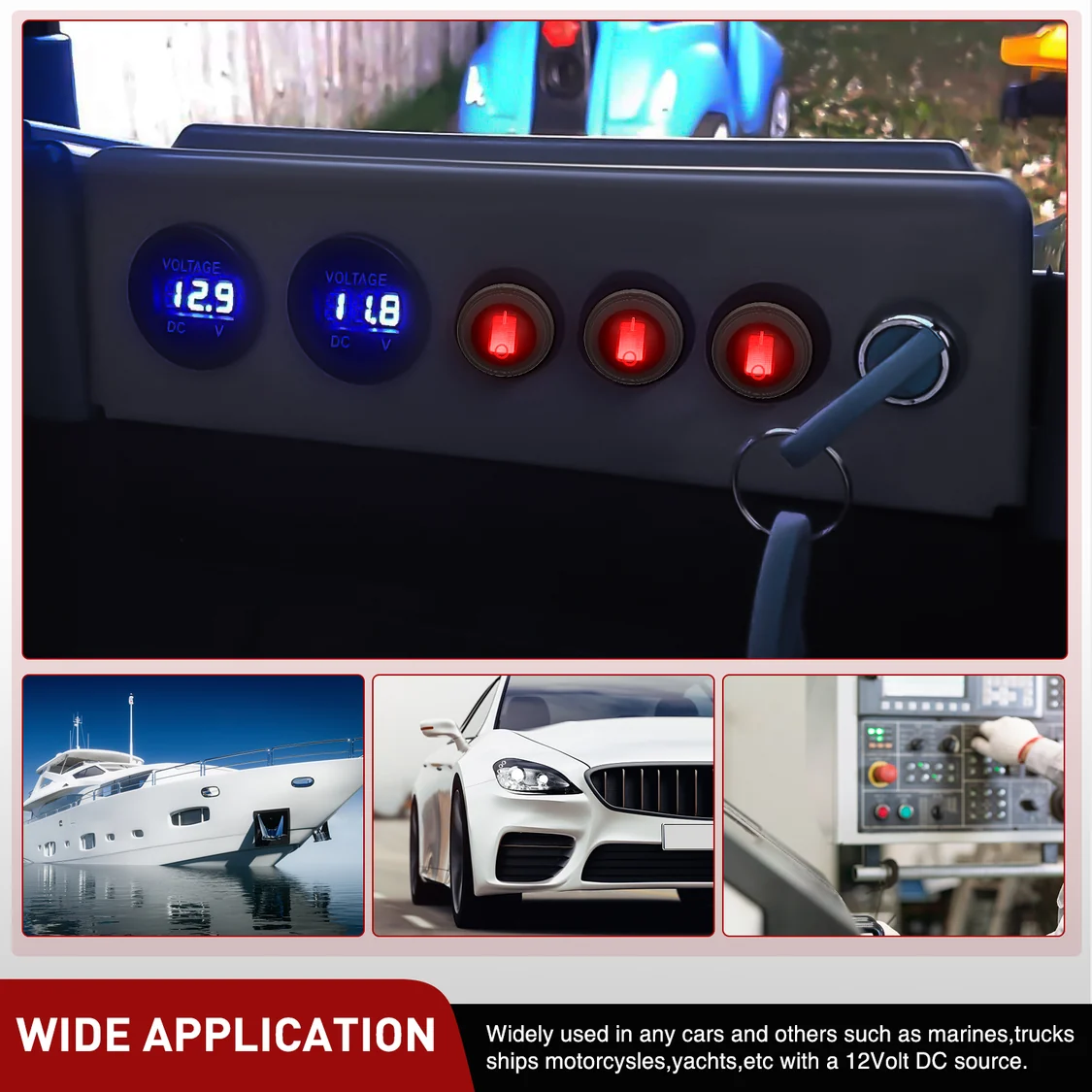

- Application: This round led rocker switch rated at 12V 20A, which can hold most types of circuits, suitable for Car, Truck, Marine boat, UTVs, ATVs etc

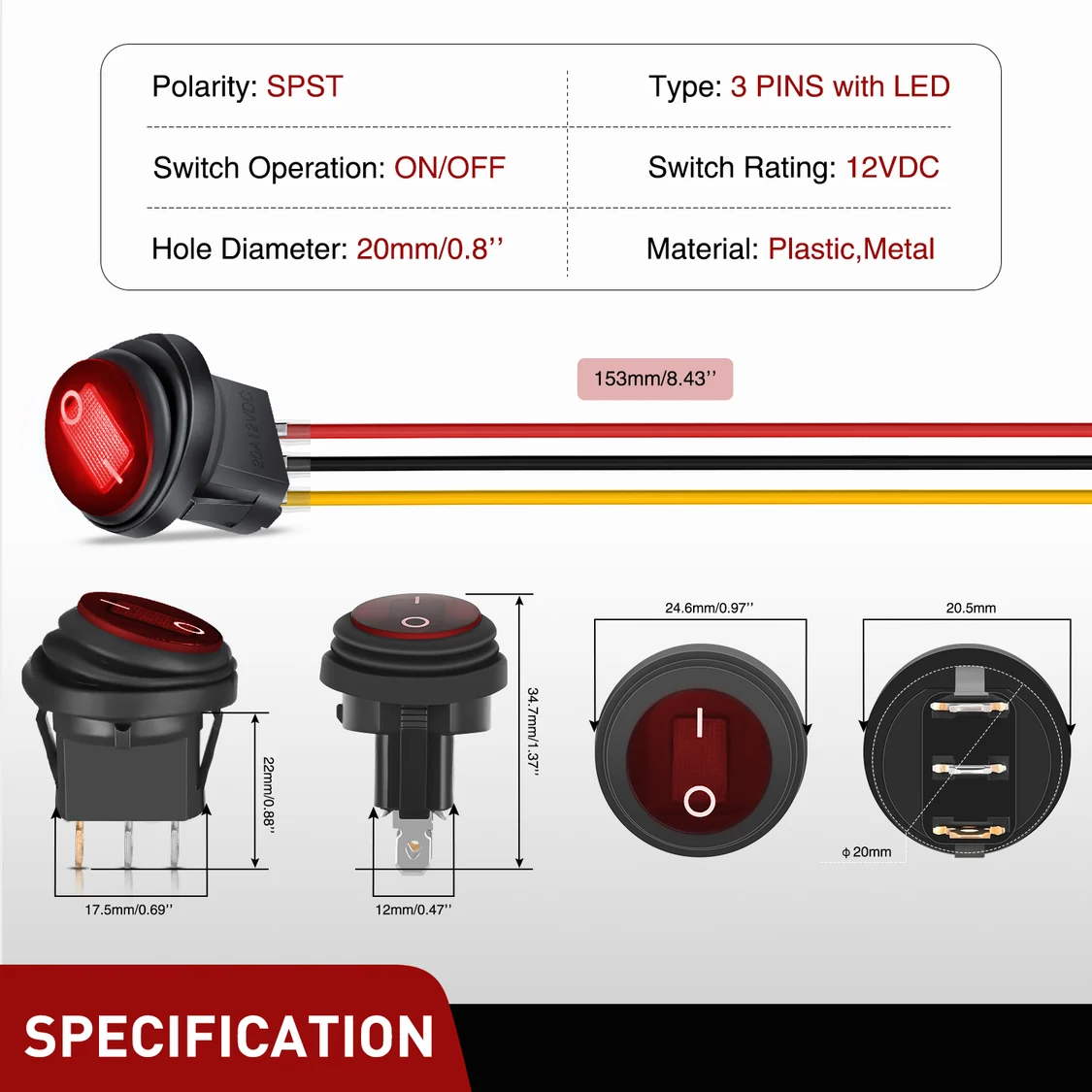

Specification
- Polarity: SPST; Type: 3 PINS with Red LED; Switch Operation: ON/OFF
- Switch Rating: 12VDC
- Hole Diameter:20mm/0.8inch
- Material: Plastic, Metal

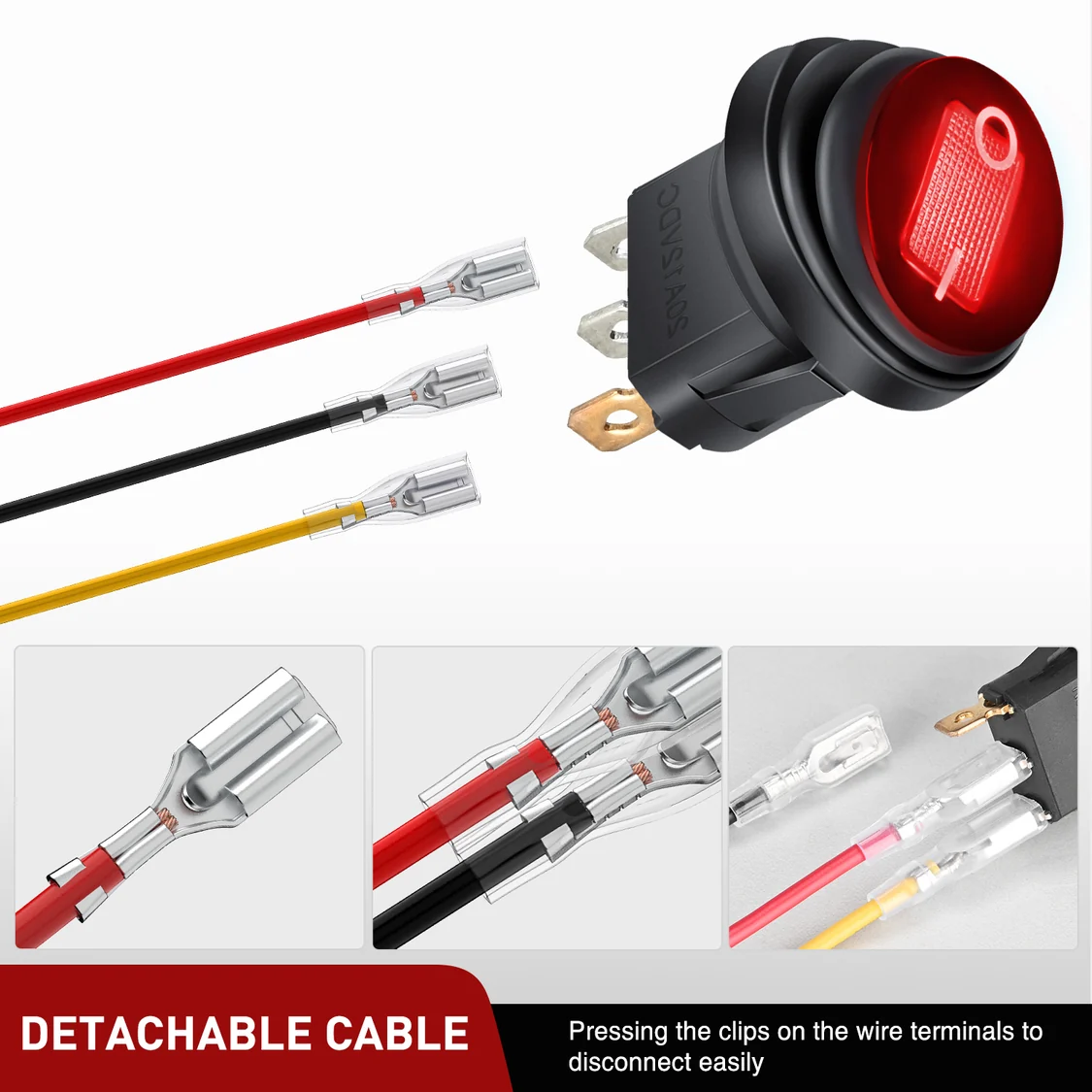

- Package includes: 1 Pcs Toggle Swithes with Jumper Wires
Features

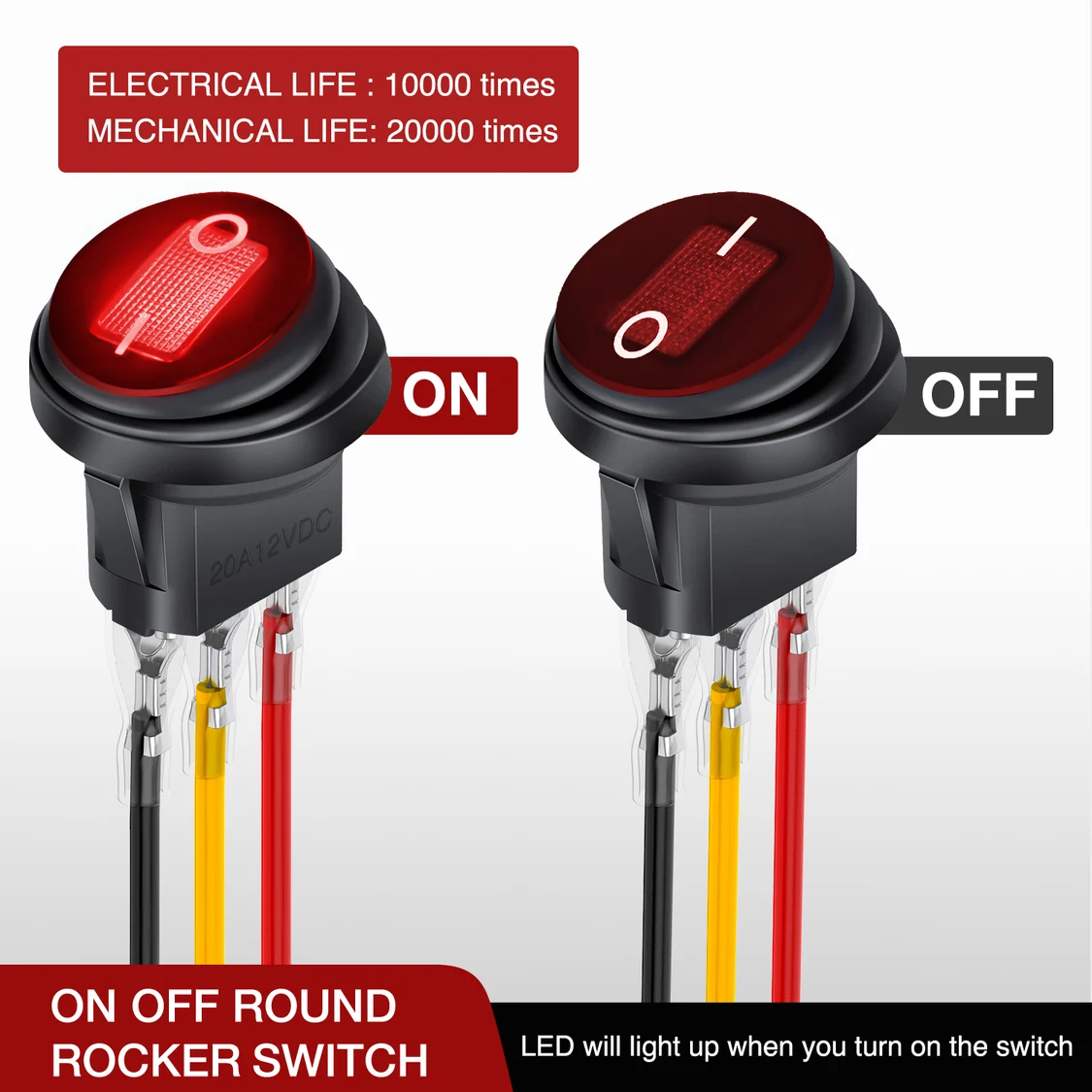

ON-OFF LED Round Switch

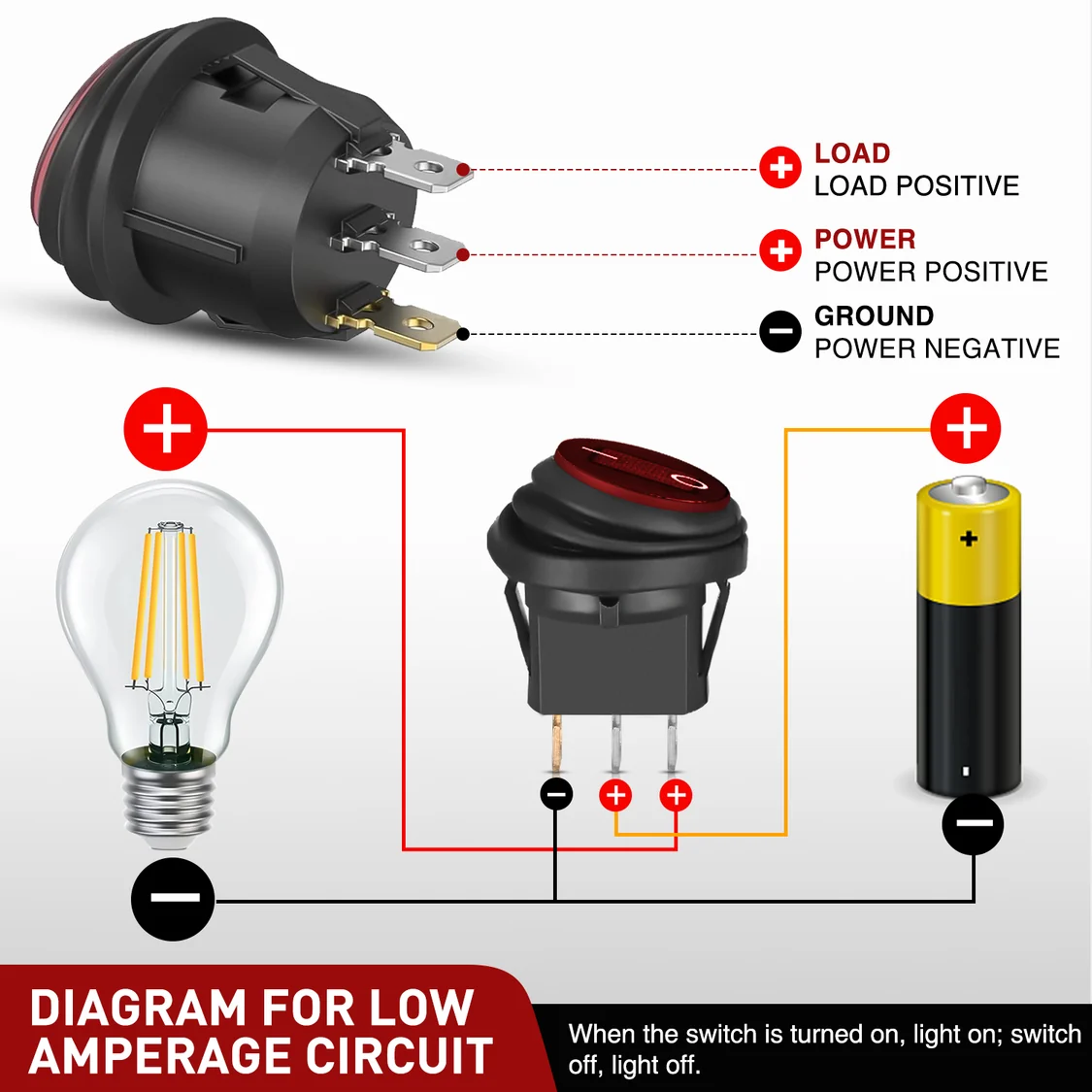

SPST 3 Prong ON-OFF lighted round rocker switch with 20A 12VDC Rating. LED Indicatior will light up when is turned ON.

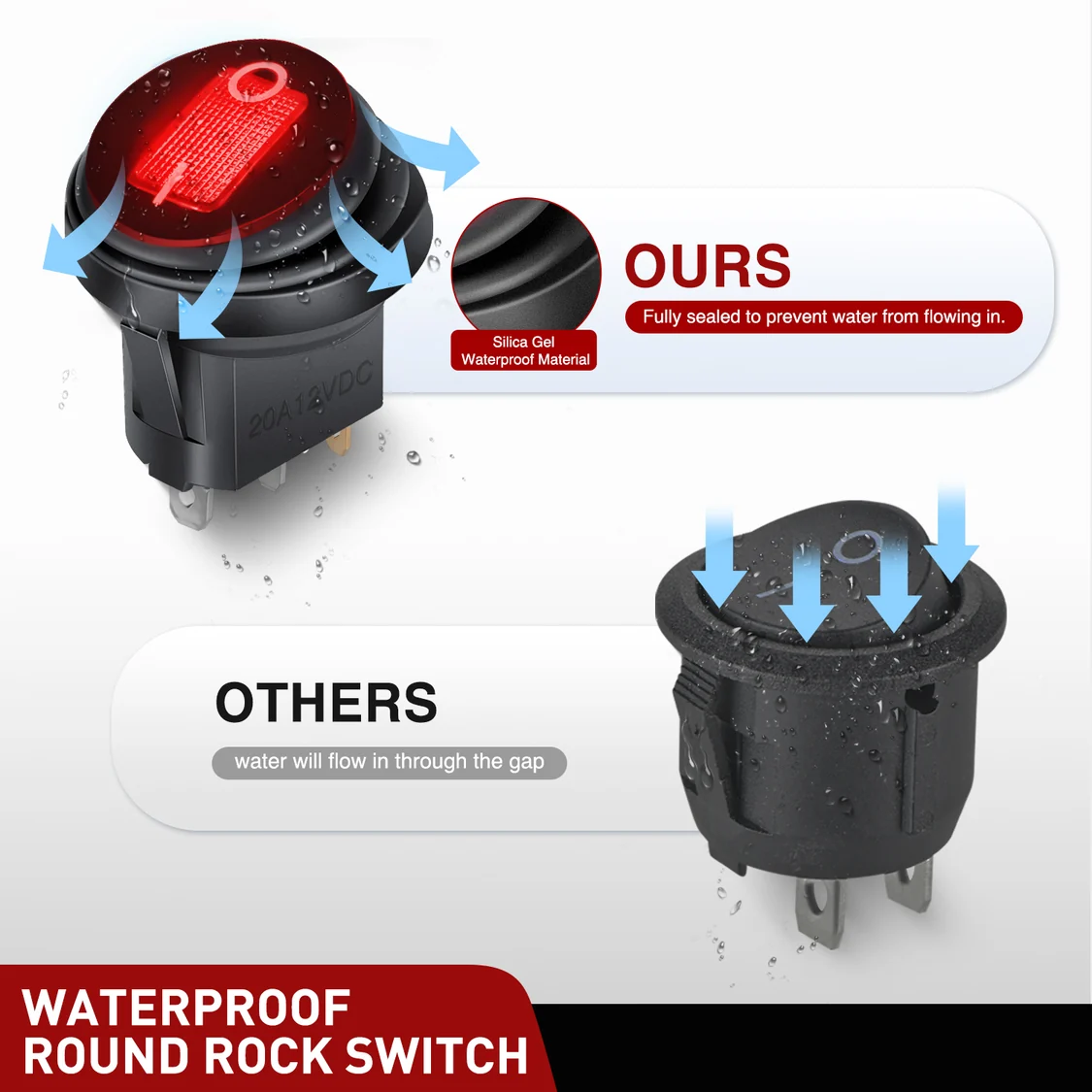

IP65 Waterproof Rating
This waterproof switch can be used in a wet environment, no worry about rain or water anymore, which can be used outdoor and rainy day.
Snap-in Design
Snap in Design make the switch easy to install. Extruding the plastic part, then Push in to the Panel.
Silver-plated Terminals
Thickened silver-plated terminals make the switch operate stably under 20A 12VDC.

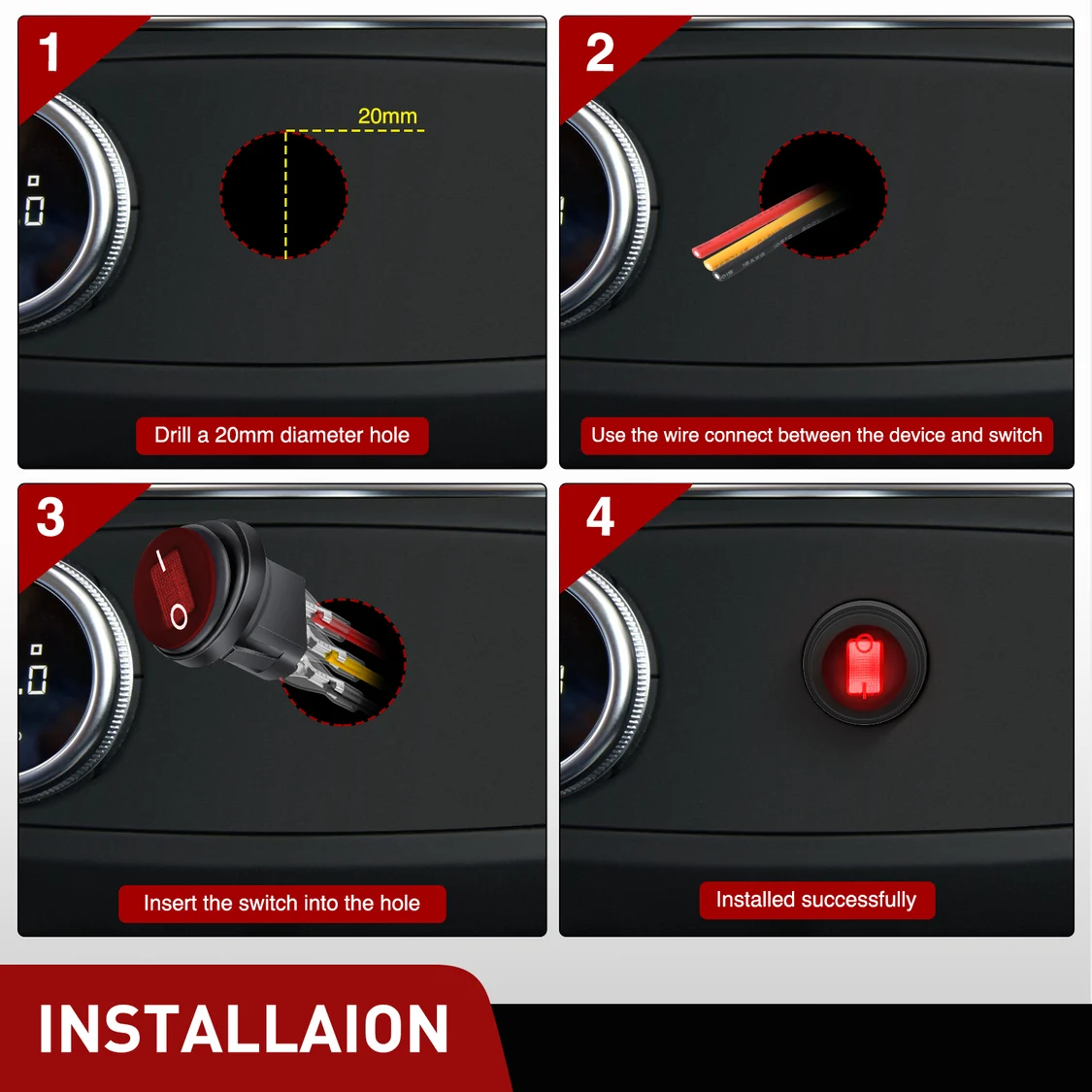

Step 1
Drill a 20mm diameter hole.
Step 2
Use the wire connect between the device and switch.
Step 3
Insert the switch into the hole.
Step 4
Installed successfully.
