Introduction

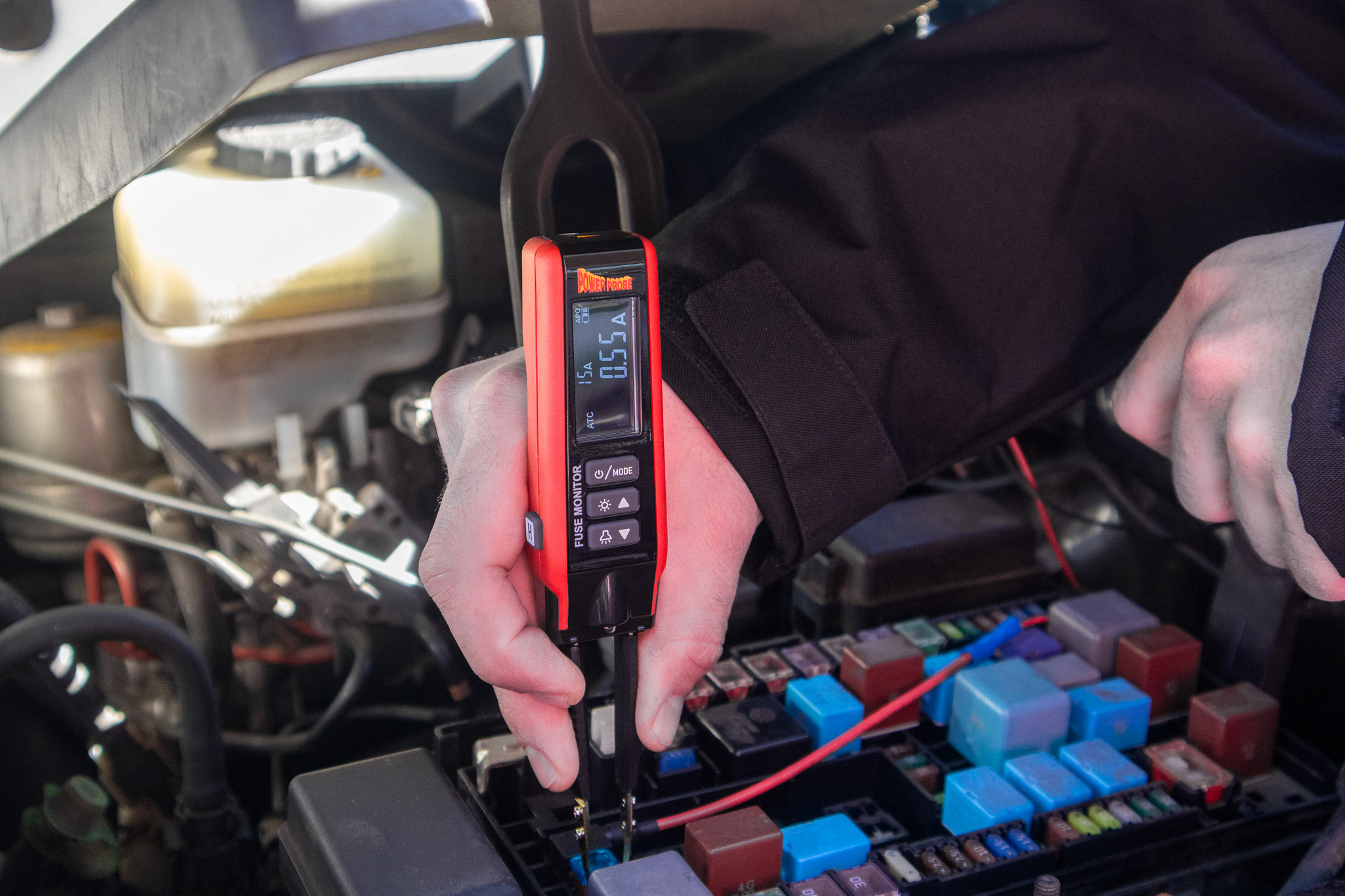

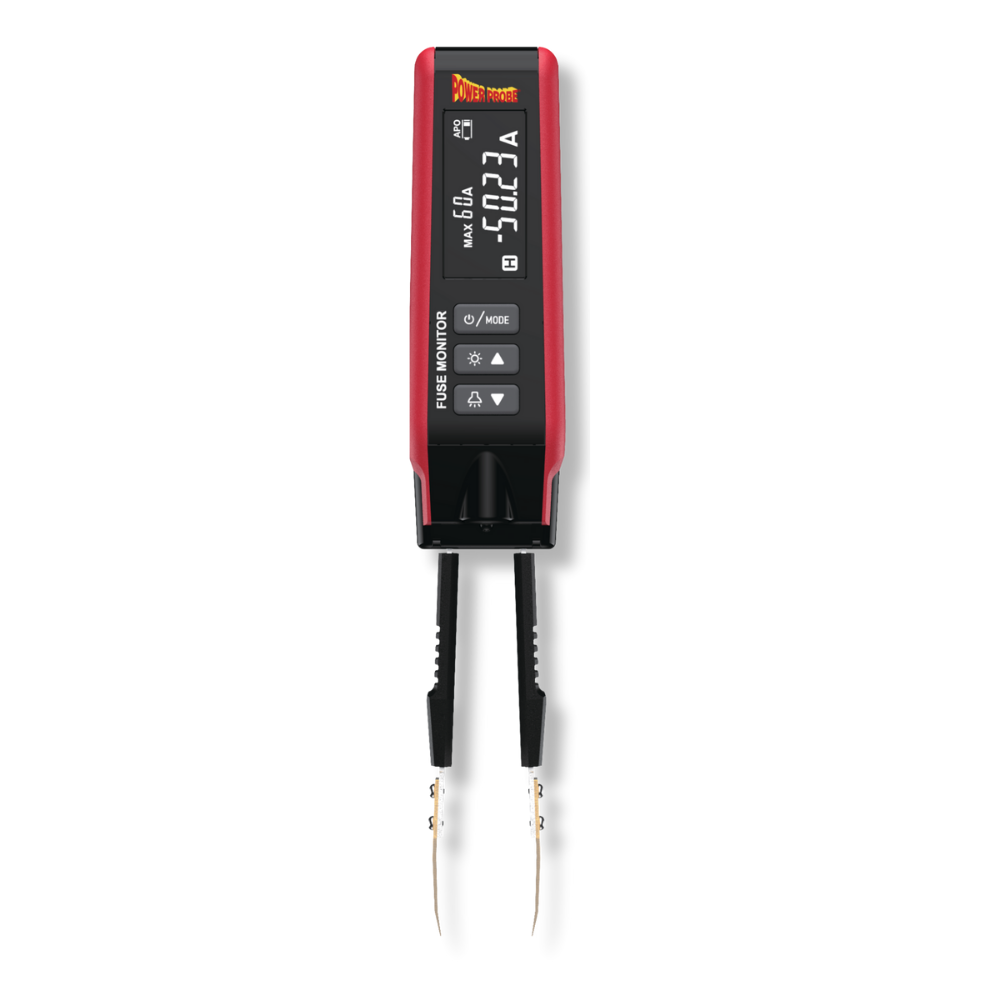

The Fuse Monitor is used to locate / isolate which circuit parasitic draw lies by measuring current across fuses without removing them. The PPFUSE can be used on Maxi, Mini, & ATC fuses with a maximum Amp rating of 80A. The Fuse Monitor calculates amp draw based on fuse size in real time. The PPFUSE is USB-C rechargeable, comes with a belt clip, has replaceable tips, and a work light.
Features
- Locate parasitic draw across fuses
- The top of the tool shows inactive, active, or open for quick fuse diagnosis.
- Accurately measures current without removing the fuse
- Ability to read Maxi, Mini, & ATC fuses up to 80 A
- Belt clip
- Flashlight
- Replaceable tips
- Pair with the draw monitor to quantify parasitic draw and use the fuse monitor to isolate the source.
- USB-C rechargable
| Weight | 0,247 kg |
|---|---|
| Dimensions | 24,5 × 5 × 7 cm |
