About this item
Product Name – Marine fuse block waterproof 6-way ATO/ATC marine fuse panel. 12V – 36V automotive fuse block, rated max 100A continuous current, and max 30A per way.

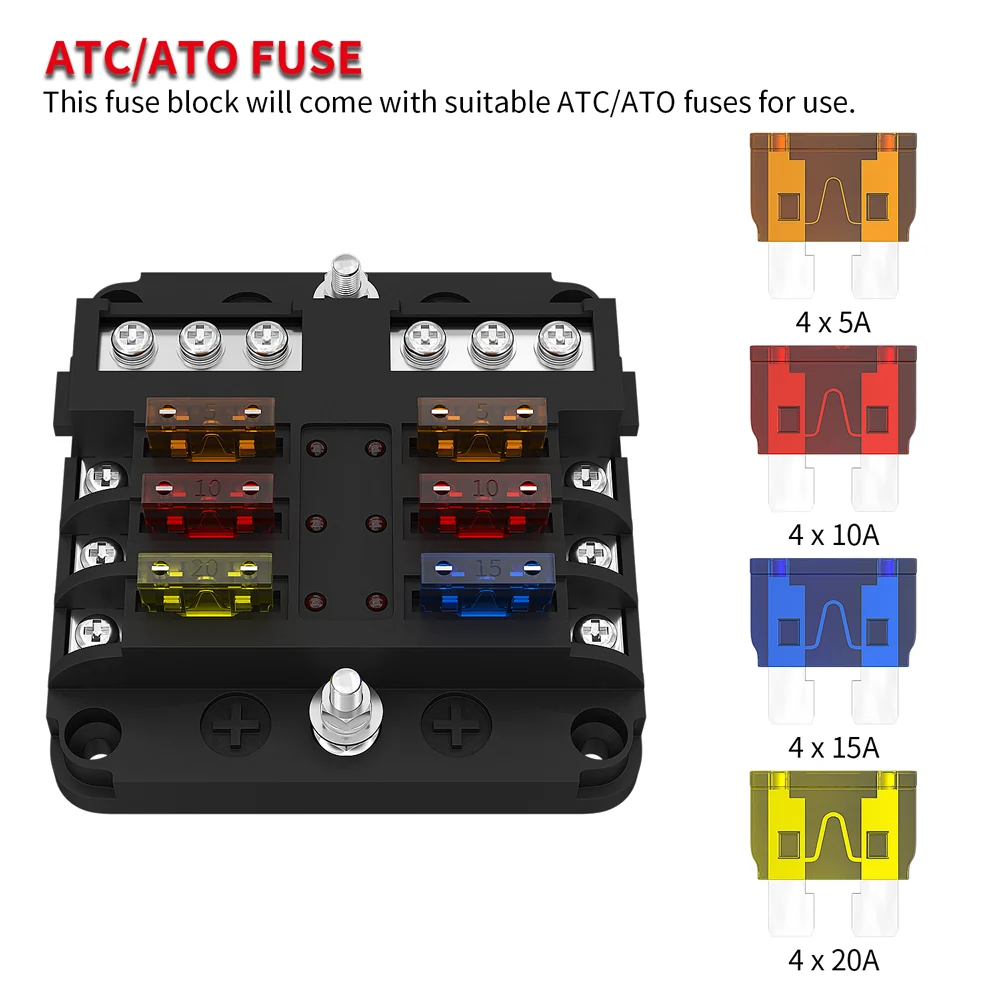

Blade Fuse Box – This 12v marine fuse box comes with suitable blade fuses for use, including 5A, 10A, 15A, and 20A fuses, four fuses for each type, a total of 16 pieces of fuses.

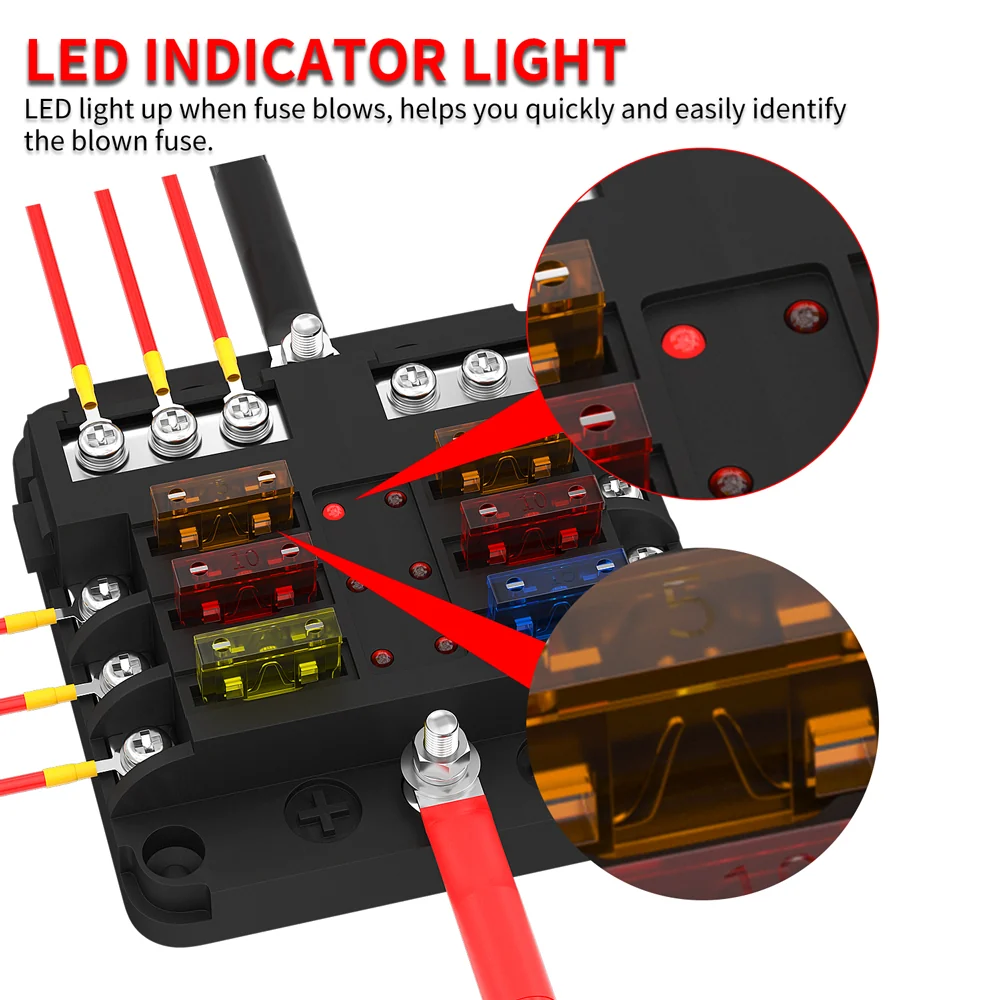

LED Indicator – This 12V fuse block is an LED indicator light design, LED lights up when the fuse blows, helping you quickly and easily identify the blown fuse.

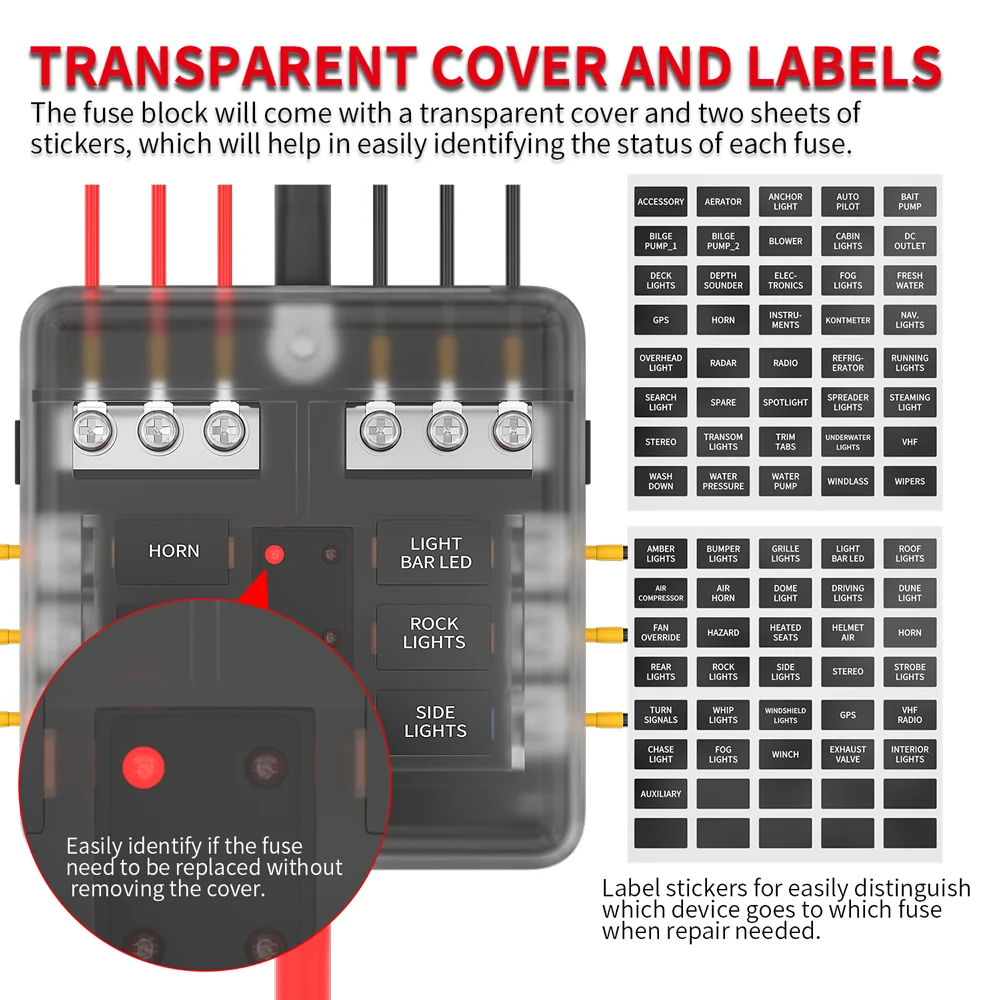

Label Sticker – The 12-volt car fuse block comes with a transparent cover and two sheets of stickers, which will help in easily identifying the status of each fuse.
Application – The 12-volt fuse block aims to protect the branch circuits, as well as make the wiring tidy and neat, preventing the device from being damaged by short circuits or continuous overload.
What’s in the package:
1 x 12V Fuse Block with Cover
12 x Blade Fuses (2x5A, 2x10A, 4x15A, 4x20A)
2 x Label Stickers
1 x set of Mounting Hardwares
Spec
| Part NO | FB-1713 |
| Fuse Type | ATC/ATO Fuse |
| Number of Fuse Slots | 6 |
| Main Line Terminal | M5 Stud |
| Main Wire | ＃4-6 |
| Single Wire Terminal | M4 threaded stud |
| Single Wire | #12-16 |
| Voltage | 12 – 36 Volt DC |
| Total Max Continuous Current Rating | 100A |
| Max Current Rating Per Way | 30A |
