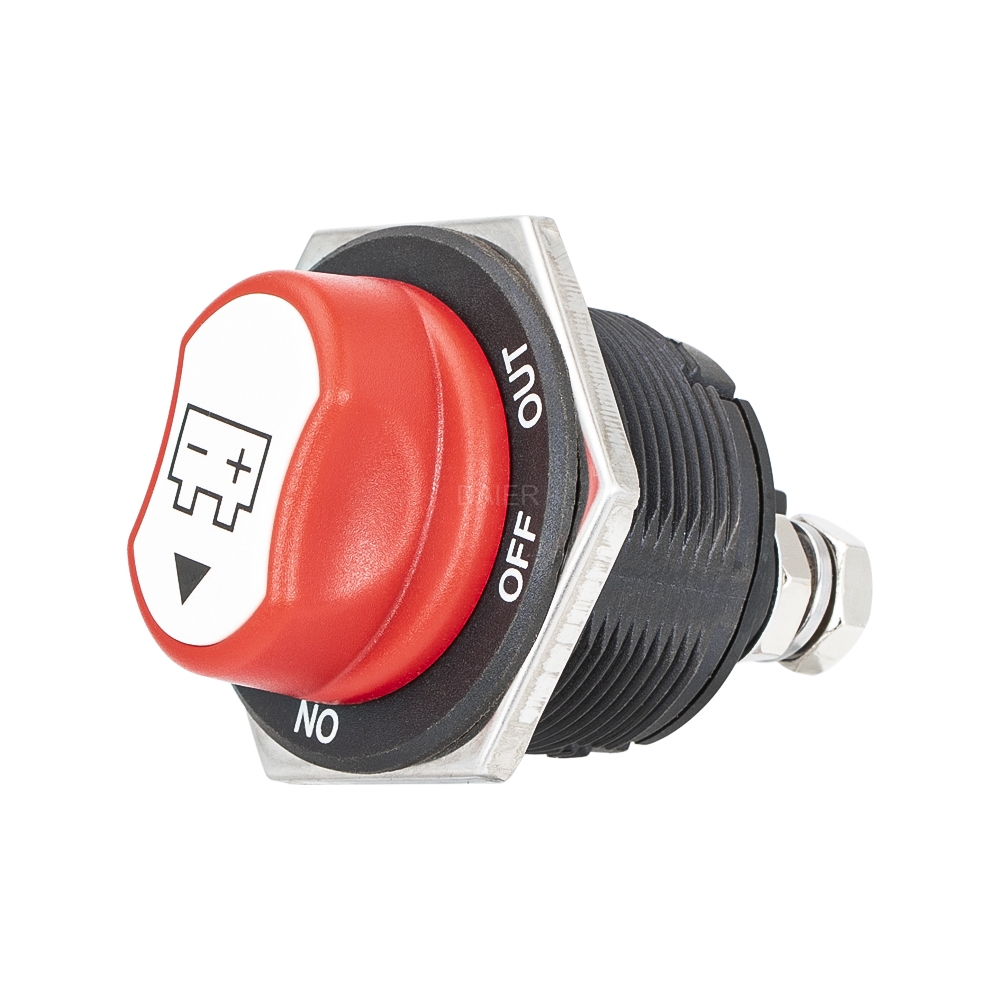

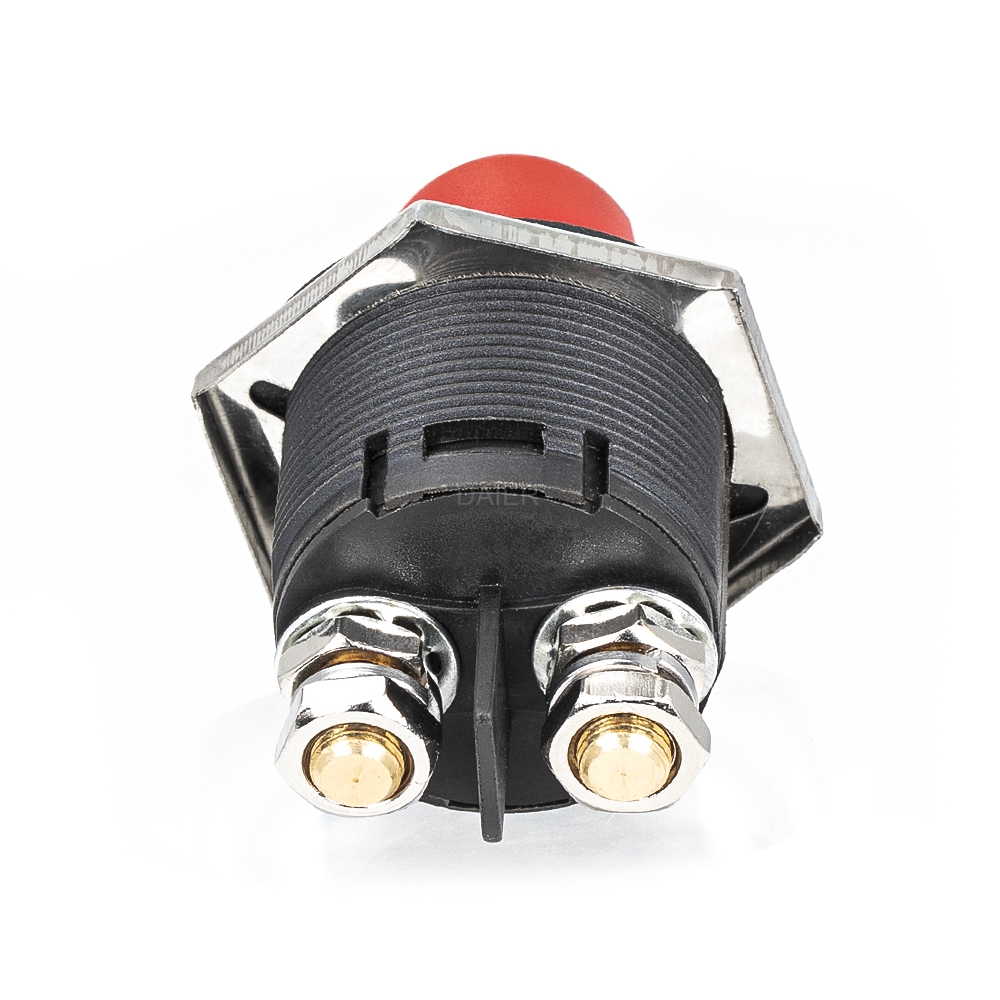

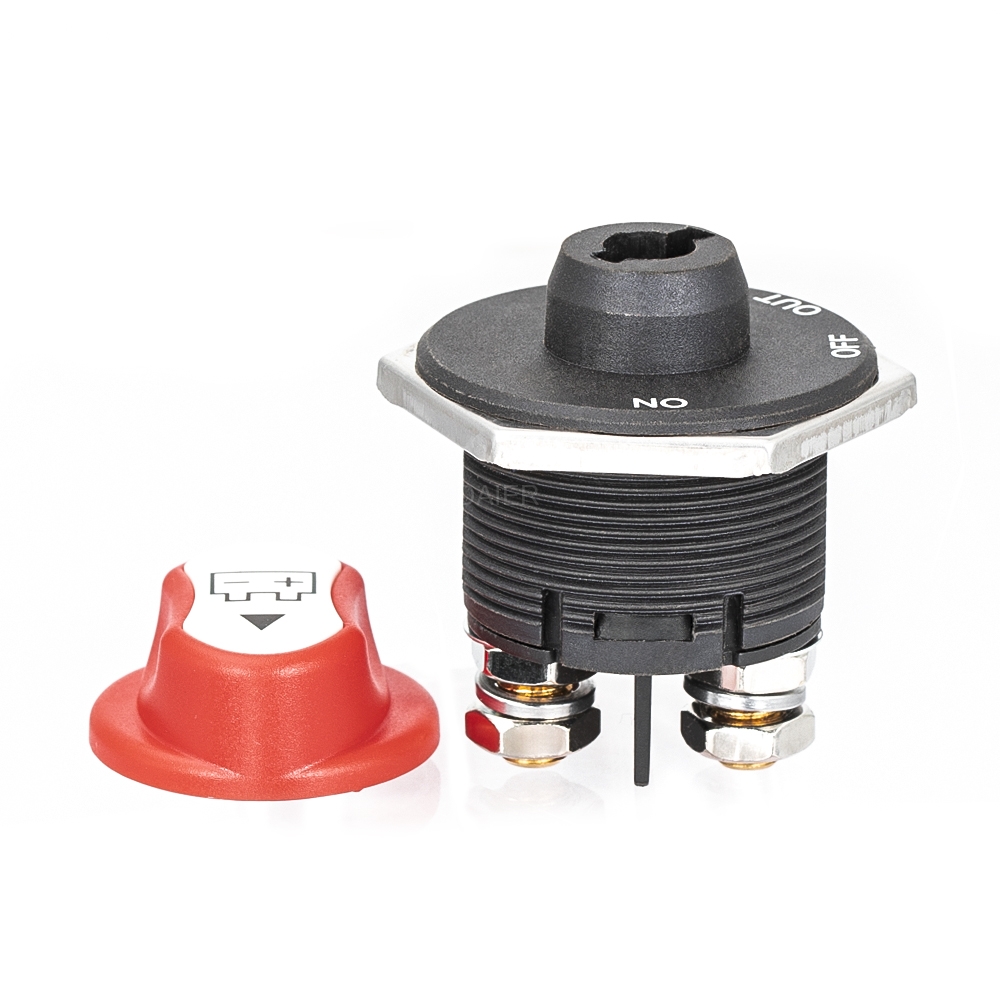

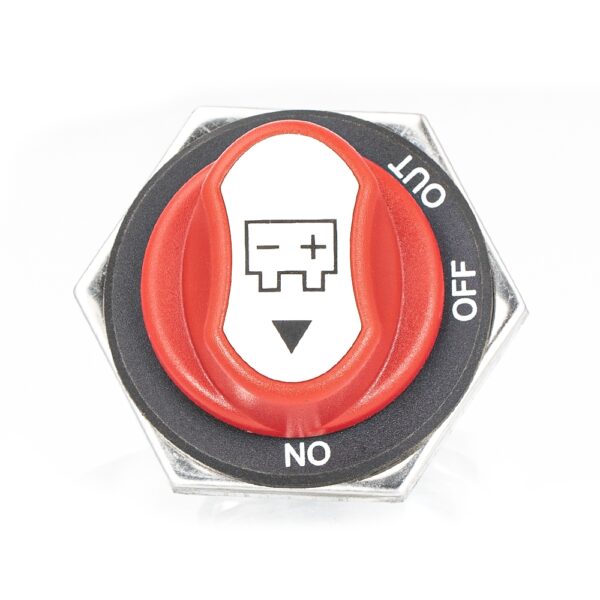

ASW-A705 Waterproof Car Battery Kill Switch Details
-
Simple Operation
ASW-A705 switch disconnects and reconnects power by simply turning the knob.
-
Sturdy Construction
ASW-A705 switch is made of plastic and solid brass nut, which is rust proof, corrosion-resistant, durable and safe to use.
-
Great Compatibility
ASW-A705 switch can isolate and protect the electrical system, and can be locked separately or together with other switches.
-
Safety Protection
ASW-A705 switch safely disconnects the battery when the vehicle or boat is not in use and eliminates any power drain from the battery.
-
Wide Application
ASW-A705 switch is widely used in switches for cars, trucks, RVs, boats, and electrical equipment.
ASW-A705 200A DataSheet
| Intermittent Rating: | 200A(300Amps) | ||
| Cranking Rating: | 200A(1000 Amps 5 sec) | ||
| Contact Resistance: | 50m ohm Max | ||
| Insulation Resistance: | DC 500V 100M ohm Min | ||
| Dielectric Strength: | AC 1000V 1 minute, DC 2000V 1 minute | ||
| Operation Temperature: | -30℃ ～+60℃ | ||
| Switch Function: | 2P SPST OFF-ON | ||
| Material: | ABS and metal | ||
| Color: | Black and red | ||
| Weight | 0,075 kg |
|---|---|
| Dimensions | 6,5 × 5,5 × 4,5 cm |
