About this item
【Terminal】- Positive and negative dual bus bar 12V marine, each battery busbar terminal block includes 2 x M6 (1/4”) terminal studs and 12 x M4 (#8) screw design, both are stainless steel material.
【Rating】- This 12V marine power distribution block can handle voltage @ Max 300V AC, 48V DC, and continous amperage @ Max 130A AC, 150A DC.
【Round Corner Base】 – This 12v bus bar terminal block is unique round corner base design, which makes the battery distribution block unique and special, looks more extraordinary compared with other busbars.
【Application】 – This battery insulated bus bar uses copper plates and stainless steel terminals as conductors, which enables the distribution block to work in extreme environment, suitable for automotive, car, RVs, trucks, marine, boat,solar energy, etc.

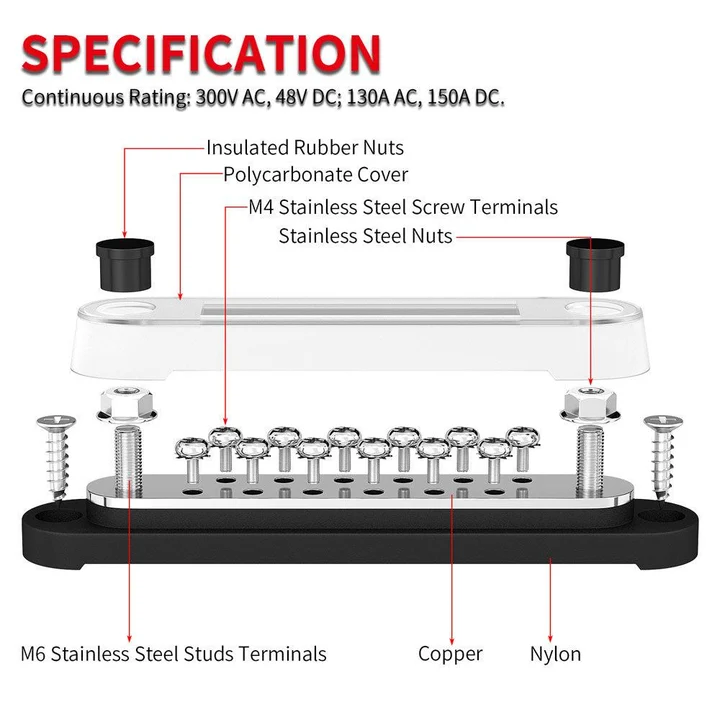

Spec
| Part NO | BB150-T2M6S12-C |
| Connection Type | Red for Positive Black for Negative |
| Terminal Studs | 2 x M6 (1/4″) |
| Terminal Screws | 12 x M4 (#8) |
| Max Voltage | 300V AC, 48V DC |
| Max Continuous Amperage | 130A AC, 150A DC |
| Base Material | Nylon |
| Plate Material | Copper |
| Terminals Material | Stainless Steel |
| Cover Material | Clear Polycarbonate |

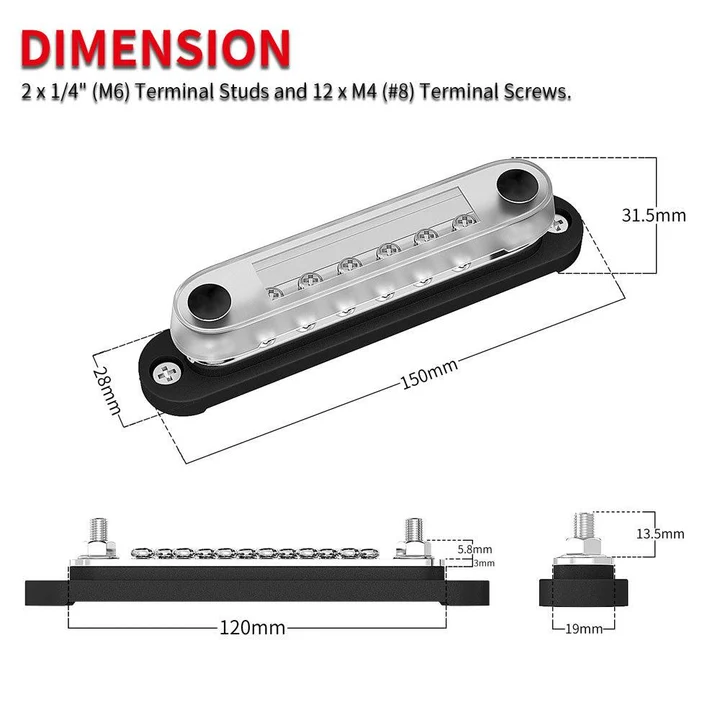

| Overall Dimension | 150mm x 28mm x 31.5mm (LxWxH) |
| Colors | Rautt, Svart |
|---|
