RELAY OG RELAYBOX
12V 70A 4-pinna relay með viðnámi – Normally Open (NO)
2.690 kr.
- Spenna: 12 V DC
- Straumþol: 70 A
- Tengjaskipan: Gerð B
- Fjöldi pinna: 4
- Stærð pinna: 6,3 mm (85 og 86), 9,5 mm (30 og 87)
- Heildarmál (með tengjum): 26 (L) × 26 (B) × 42 (H) mm
Availability: In stock

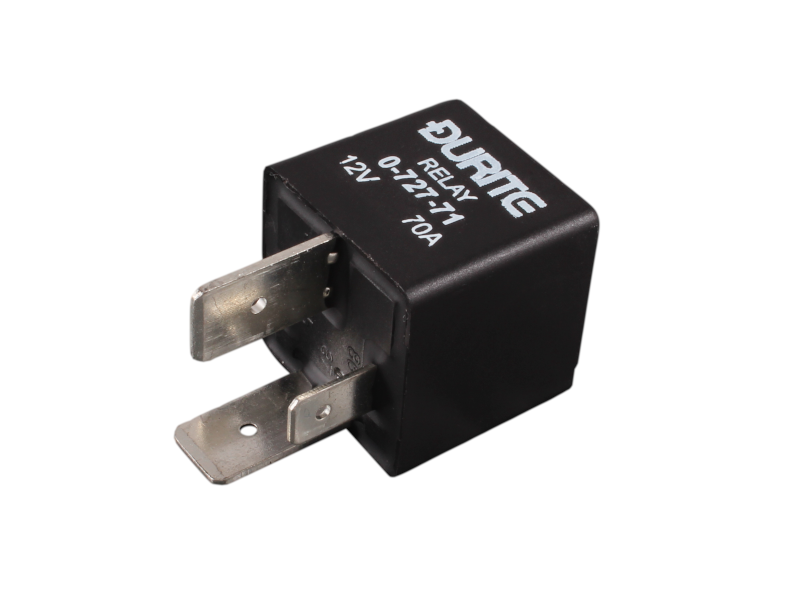

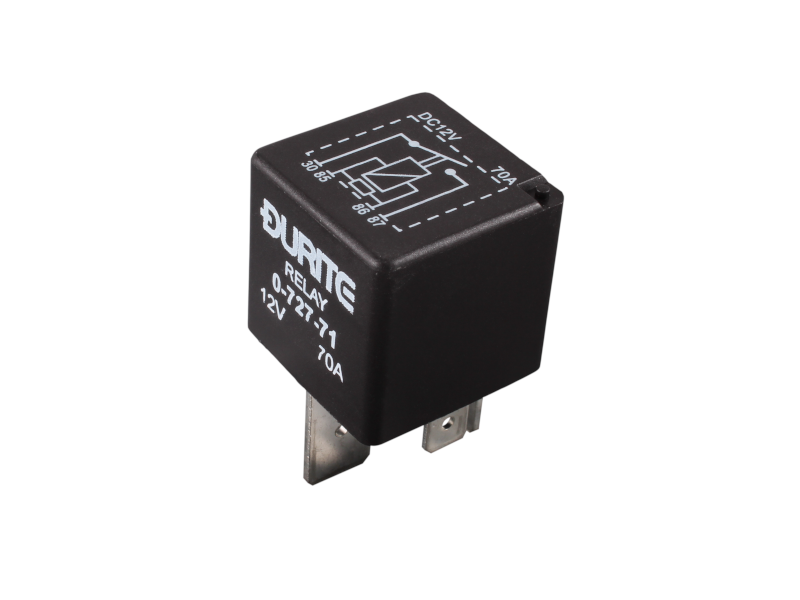

Durite-branded high power make and break relay with normally open (NO) contacts and resistor, rated at 12V, 70A. Also known as a Maxi relay and commonly used in starter motor applications.

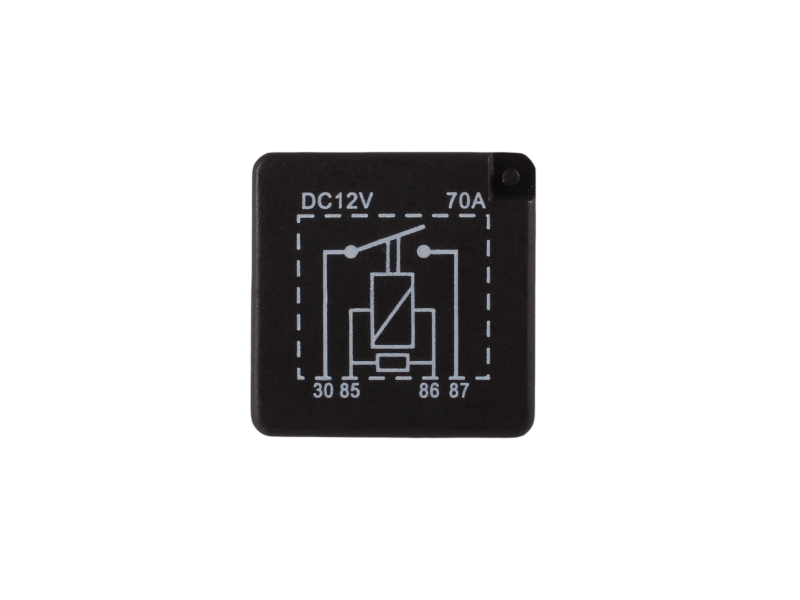

Features a resistor fitted across the coil (terminals 85 & 86) to suppress voltage spikes that occur in the coil circuit when the relay is de-energised. If not suppressed, these can damage sensitive electronic components such as those found in central locking or alarm systems.

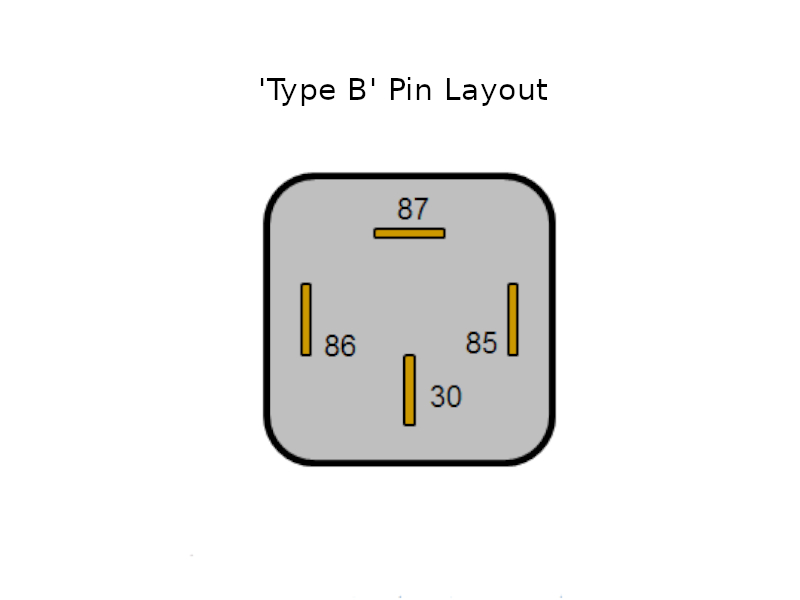

Terminals are Type B layout.
Note: Terminals 30 & 87 are 9.5mm blade width and will not fit our 4-way standard relay box
- Voltage rating: 12V DC
- Current rating: 70A
- Terminal configuration: Type B
- No terminals: 4
- Terminal size: 6.3mm blade (85 & 86), 9.5mm blade (30 & 87)
- Overall dims (inc. terminals): 26 (L) x 26 (W) x 42 (H) mm
