RELAY OG RELAYBOX
12V 20A 4-pinna relay með öryggi – Normally Open (NO)
3.290 kr.
- Spenna: 12 V DC
- Straumþol: 20 A
- Tengjaskipan: Gerð B
- Fjöldi pinna: 4
- Stærð pinna: 6,3 mm
- Festing: Aftakanleg málmfesting
- Þvermál festingargats: 5 mm
- Heildarmál (með tengjum): 33 (L) × 25 (B) × 43 (H) mm
Availability: In stock

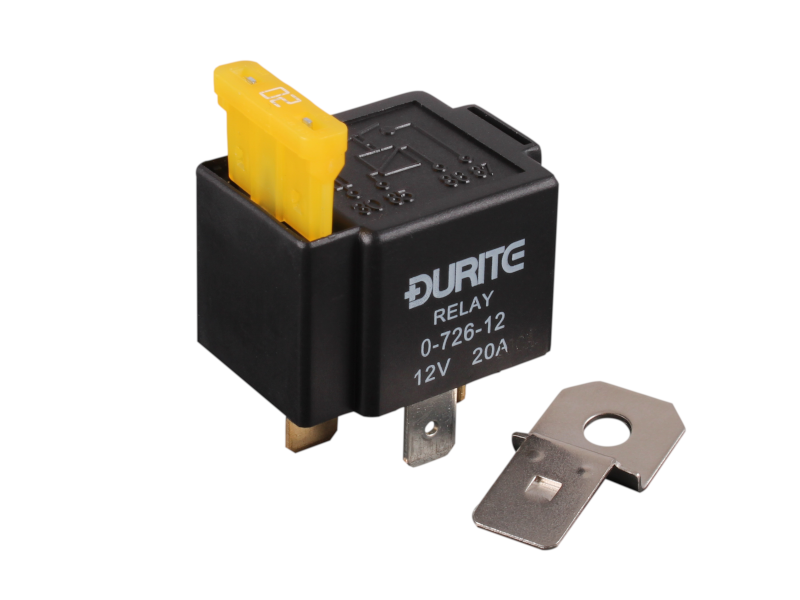

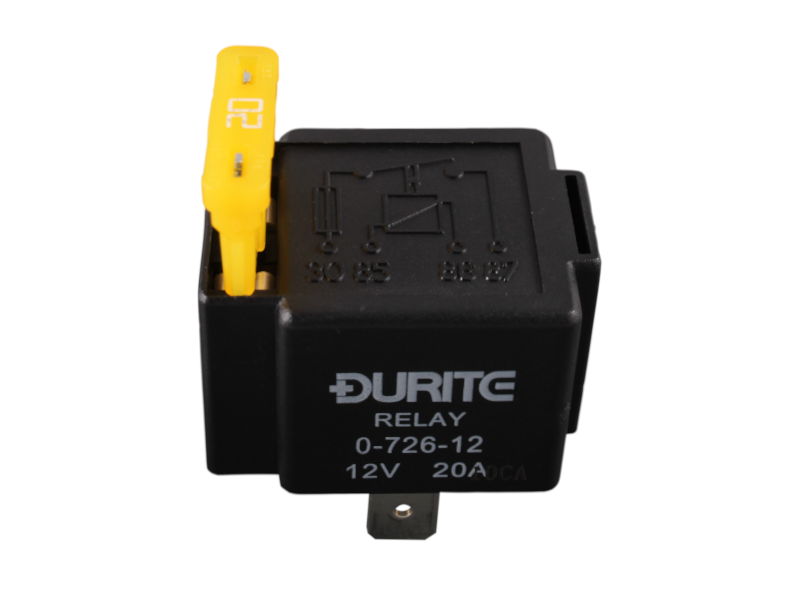

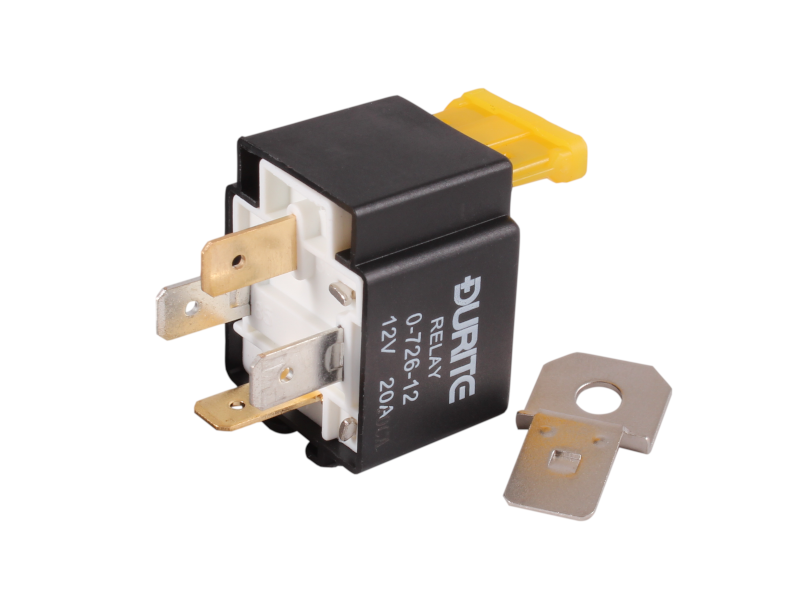

Standard/mini make and break relay with normally open contacts rated at 12V, 20A. Incorporates a standard blade fuse slot for protection of the high load switched circuit (terms 30 & 87) and comes fitted with a 20A fuse. Includes detachable metal bracket for mounting if not using a relay socket.
Description
Specifications
- Voltage rating: 12V DC
- Current rating: 20A

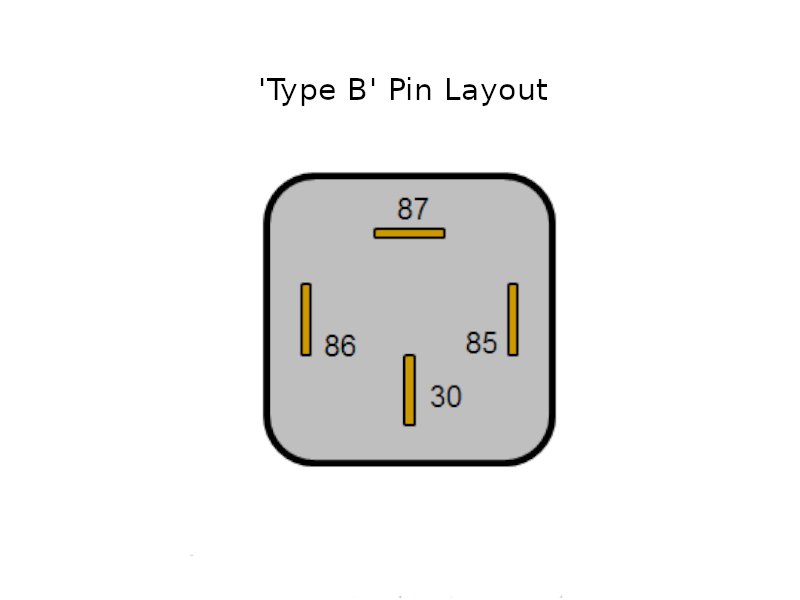

- Terminal configuration: Type B
- No terminals: 4
- Terminal size: 6.3mm blade
- Bracket type: Detachable, metal
- Bracket hole dia: 5mm
- Overall dims (inc. terminals): 33 (L) x 25 (W) x 43 (H) mm
